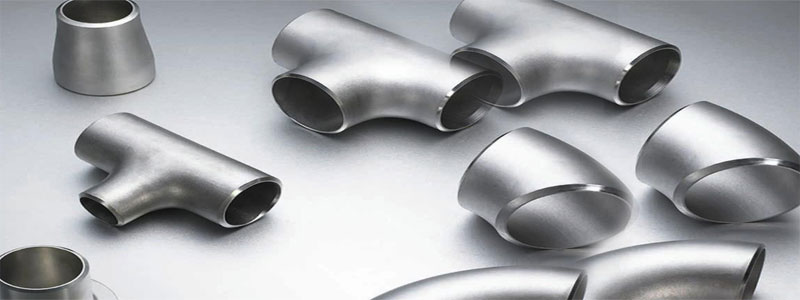

Buttweld Fittings
We offer wide variety of buttweld fittings, industrial buttweld fittings, which are fabricated from finest quality of raw materials. Manufactured as per the international quality and safety standards, we offer these products in different dimensions and at highly competitive prices. These products are mostly applied in construction and engineering industry.

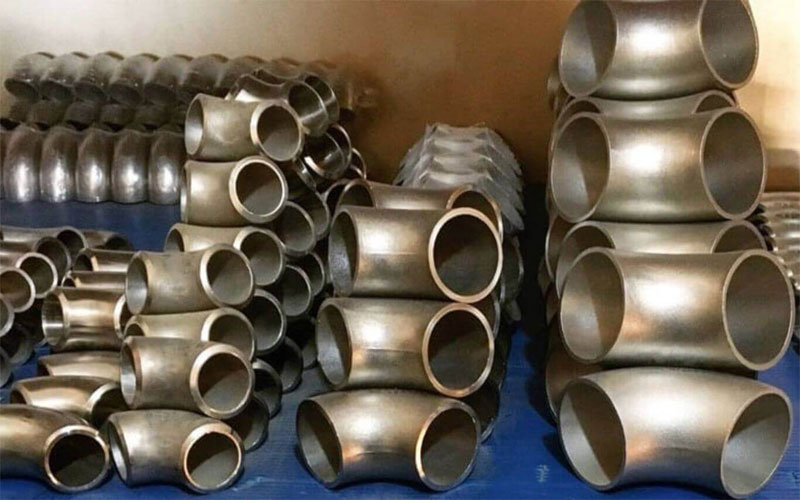

Elbow
Grade:
ASTM A403 WP Gr. 304, 304H, 309, 310,
316, 316L, 317L, 321, 347, 904L
Angle:
5° – 180° Elbows, 90° and 45° Long Radius
Elbows, Long Radius Returns, Short Radius Elbows and Returns
Radius:
R=1D – 10D, 15D, 20D
Thickness:
3mm – 40mm / SCH3, SCH10, SCH20,
SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160,
XXS

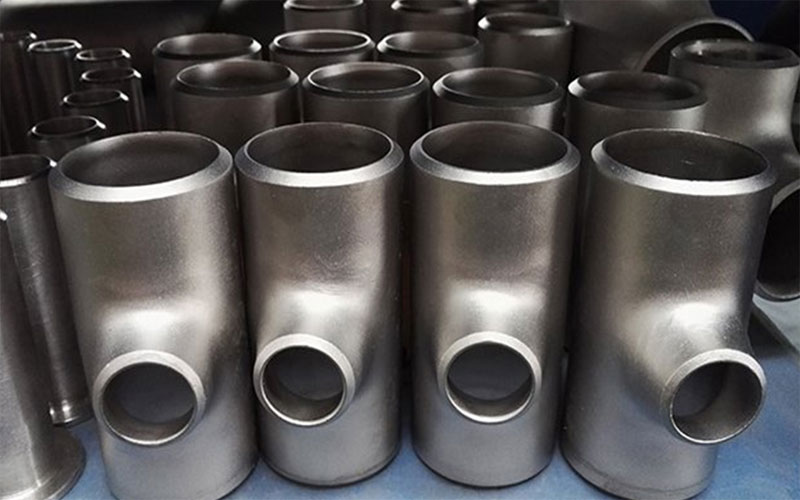

Tee
Grade:
ASTM A403 WP Gr. 304, 304H, 309, 310,
316, 316L, 317L, 321, 347, 904L
Thickness:
3mm – 40mm / SCH5, SCH10, SCH20,
SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160,
XXS
Type:
Equal Tees, Reducing Tees

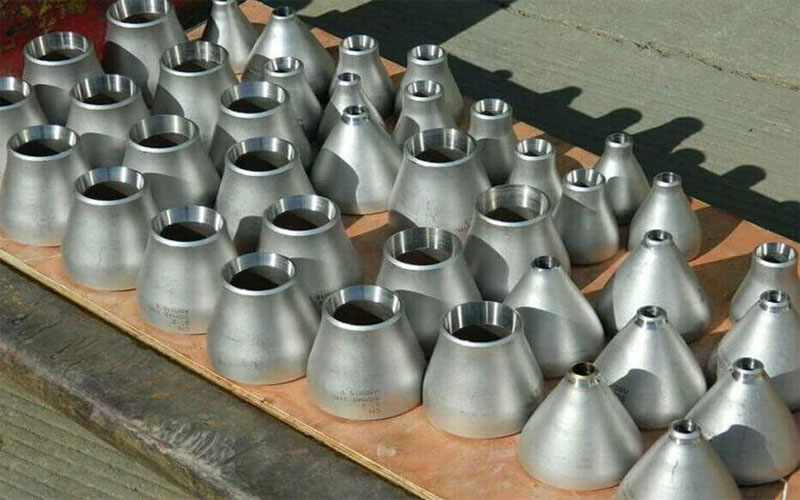

Reducer
Grade:
ASTM A403 WP Gr. 304, 304H, 309, 310,
316, 316L, 317L, 321, 347, 904L
Thickness:
3mm – 40mm / SCH5, SCH10, SCH20,
SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160,
XXS
Type:
Concentric Reducers, Eccentric Reducers

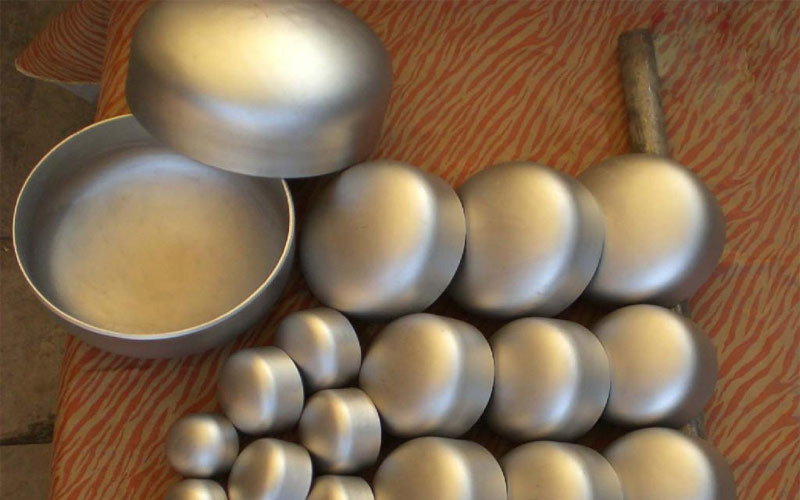

End Cap
Grade:
ASTM A403 WP Gr. 304, 304H, 309, 310,
316, 316L, 317L, 321, 347, 904L
Thickness:
2-40 mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Outside Diameter:
1/2″ – 48″
